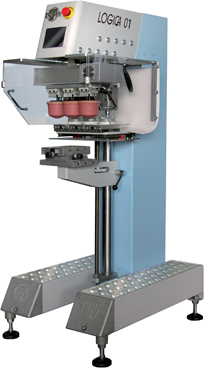

LOGICA 01

The Facts:

  • Operation: All electric with touch screen control
  • Printing Force: 660 N
  • Max Print Speed: 1800 c/h*
  • Number of Colors: 1-2-3
  • Max Cup Diameter: 90 mm
  • Standard Cup Sizes: 1-2X90 or 3X70mm
  • Vertical Stroke: 95 mm
  • Max Pad Height: 190mm (90mm with pad shuttle)
  • Power: 230 V, 50/60 Hz, single phase
  • Weight: about 140 kg
  • Dimensions: 616 x 880 x 1545(h) (basic model)

*We’re going to make your machine go fast and print large, but final speeds and print areas will vary from what’s specified above, based on the application.

Popular Configurations:

  • 1 color basic model

  • 1 color w/ Refresher

  • 2 color with pad shuttle

  • 3 color with pad shuttle
